Generating a synthetic image to compare with one taken by the Zimmerwald MAIN telescope

•
•

/Users/liamrobinson/Documents/maintained-research/mirage/mirage/orbit.py:503: UserWarning: Velocity is transformation is missing omega cross r term from TEME to J2000, but this is tiny
  warnings.warn(
RA tracking rate: -241.745 arcsec/sec, Dec tracking rate: 422.568 arcsec/sec
71.92084429254598
-133.07915570745402
[ 0.70734835 -0.5132297   0.48605923]
Object identity: 2013-021D
Observation midpoint: 2022-08-31 22:45:57.612325+00:00 UTC
Exposure time: 0.5 seconds
We are looking at RA/Dec (midpoint): (array([122.]), array([40.]), array([10.89643493])), (array([59.]), array([9.]), array([11.33693735]))
[-0.27677729  0.43162696  0.85854091]
[-0.00804722  0.89237167 -0.45122947]
1851.2652170837423
[[2.13045823]]
6.324055866080483e+16
4.999374174743546e-12
158081.607882591
Objects in frame 1:
AVUM DEB (ADAPTOR)
Synthesizing CCD Image: 1.54e+00 seconds
Background std of synthetic image: 2.93
Background std of real image: 1.95

import datetime
import os

import matplotlib.pyplot as plt
import numpy as np

import mirage as mr
import mirage.photo as mrp

file = '/Users/liamrobinson/Library/CloudStorage/OneDrive-purdue.edu/aiub/ZigZag/13021D_31082022_fullframe.fits'
header, data = mrp.load_fits(file)
intl_des = '2013-021D'

# print('\n'.join([f'{k}: {v}' for k,v in header.items()]))
cycle_time = header['ACT']
# i = 85
i = 85
img = data[i].T  # Transpose to get its dimensions right
timedelta_to_i = mr.seconds(i * cycle_time)

date_obs_initial = (
    datetime.datetime.strptime(header['FRAME'], '%Y-%m-%dT%H:%M:%S.%f').replace(
        tzinfo=datetime.timezone.utc
    )
    + timedelta_to_i
)
integration_time_s = header['EXPOSURE']
date_mid = date_obs_initial + mr.seconds(integration_time_s / 2)

obj = mr.SpaceObject('cube.obj', identifier=intl_des)
station = mr.Station('zimmain')

station.telescope.fwhm = 4
catalog = mr.GaiaSpectralStarCatalog(station)

obj_pos, obj_vel = obj.propagate(date_mid, return_velocity=True)
station_pos, station_vel = station.j2000_at_dates(date_mid, return_velocity=True)
r_obs = mr.vecnorm(obj_pos - station_pos)[0]
look_dir_eci = mr.hat(obj_pos - station_pos)
up_dir_eci = mr.hat(station_pos)  # for the az/el mount

az, el = station.eci_to_az_el(date_mid, look_dir_eci)
theta = 90 - np.rad2deg(el)

dra, ddec = mr.rv_to_daz_del(obj_pos - station_pos, obj_vel - station_vel)
dra *= mr.AstroConstants.rad_to_arcsecond
ddec *= mr.AstroConstants.rad_to_arcsecond
print(
    f'RA tracking rate: {dra:.3f} arcsec/sec, Dec tracking rate: {ddec:.3f} arcsec/sec'
)
v_perp = mr.hat(np.cross(look_dir_eci, up_dir_eci))
up_dir_eci = np.cross(v_perp, look_dir_eci)

print(theta)
rotator_angle = np.deg2rad(theta - 205)
print(np.rad2deg(rotator_angle))

print(up_dir_eci)
up_dir_eci = mr.rv_to_dcm(look_dir_eci * rotator_angle) @ up_dir_eci

look_ra_app, look_dec_app = mr.eci_to_ra_dec(look_dir_eci)
print(f'Object identity: {intl_des}')
print(f'Observation midpoint: {date_mid} UTC')
print(f'Exposure time: {integration_time_s} seconds')
print(
    f'We are looking at RA/Dec (midpoint): {mr.rad_to_dms(look_ra_app)}, {mr.rad_to_dms(look_dec_app)}'
)
print(look_dir_eci)
print(up_dir_eci)

# import pyvista as pv
# import mirage.vis as mrv
# p = pv.Plotter()
# mrv.render_observation_scenario(
#     p,
#     np.array([date_mid]),
#     station=station,
#     look_dirs_eci=look_dir_eci,
#     sensor_extent_km=r_obs,
#     up_dirs_eci=up_dir_eci,
# )
# p.show()

phase_angle_rad = mr.angle_between_vecs(-look_dir_eci, mr.sun(date_mid))
s2 = mr.Station()
sint_val = mr.sint(s2, np.deg2rad(theta))[0]

print(r_obs)
print(phase_angle_rad)
print(sint_val)

r_sph_meter = 0.5
irrad_sphere = (
    mr.AstroConstants.sun_irradiance_vacuum
    * mr.normalized_light_curve_sphere(
        cd_sphere=0.3, r_sphere_m=r_sph_meter, phase_angle_rad=phase_angle_rad
    )
    / (r_obs * 1e3) ** 2
)[0, 0]
print(irrad_sphere)

obj_signal = sint_val * irrad_sphere * integration_time_s
print(obj_signal)
# endd

mr.tic('Synthesizing CCD Image')
img_syn = station.telescope.ccd.generate_ccd_image(
    date_mid,
    integration_time_s,
    station,
    look_dir_eci,
    [dra, ddec],
    obj_signal,
    catalog,
    up_dir_eci=up_dir_eci,
    add_distortion=False,
    noise=True,
    sky_brightness=True,
    binning=(2, 2),
)
flat_frame = np.load(os.path.join(os.environ['DATADIR'], 'zimmain_flat.nogit.npy'))
mr.toc()

# simulating binning
assert all(
    [not x % 2 for x in img_syn.shape]
), "One or more of the image's dimensions sizes is odd, cannot bin"
img_syn = img_syn.reshape(img_syn.shape[0] // 2, 2, img_syn.shape[1] // 2, 2).sum(
    axis=(1, 3)
)
img_syn, _, _, img_syn_br_std = mrp.background_subtract(
    img_syn,
    reduction_factor=1,
    sigma=3.0,
    box_size=100,
)
# img_syn = (img_syn * flat_frame.T).astype(np.int16) # Apply the flat fielding effect
# img_syn, _, _, img_syn_br_std = mrp.background_subtract(
#     img_syn,
#     reduction_factor=1,
#     sigma=3.0,
#     box_size=100,
# )
img, _, _, img_br_std = mrp.background_subtract(
    img, reduction_factor=1, sigma=3.0, box_size=100
)

print(f'Background std of synthetic image: {img_syn_br_std:.2f}')
print(f'Background std of real image: {img_br_std:.2f}')

np.savez(
    '/Users/liamrobinson/Documents/maintained-research/mirage/examples/14-digital-twin-2024/data/zim.nogit.npz',
    img=img,
    img_syn=img_syn,
    br_std_img=img_br_std,
    br_std_synth=img_syn_br_std,
)

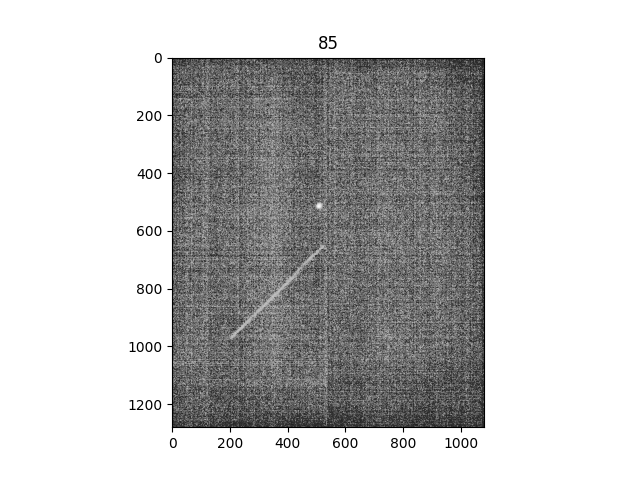

mrp.plot_fits(img_syn)

plt.figure()
mrp.plot_fits(img)
plt.title(f'{i}')
plt.show()
